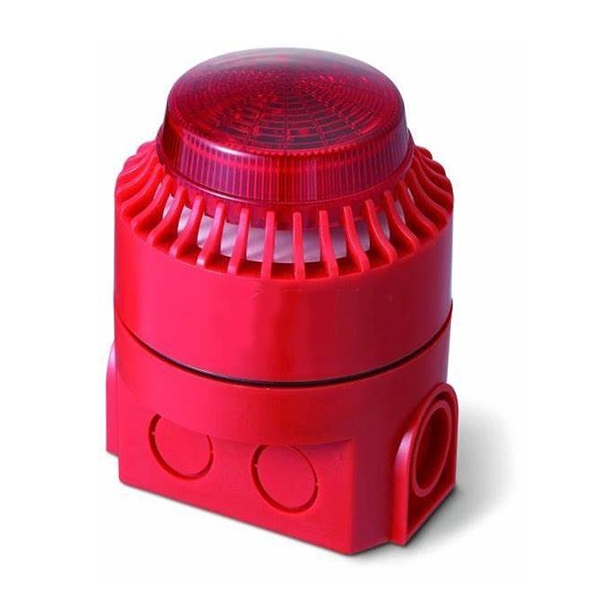

Electronic Sounder And Beacon

This electronic sounder is designed for use with fire alarm systems, security systems and industrial signaling systems.  Combined sounder and beacon provides and audio-visual warning with is suitable for places where high sound output and visual indication is required.

Characteristics
EN54-3 Approval Type B Sonder Beacon
32 signal tones selectable by Dip switch.
High  efficiency lens for maximum light output.
High sound output with low current consumption.
Volume Control as standard.
Two sets of IN and OUT terminals, easy for installation.

Specification

Voltage	24V DC
Current @24V DC (MAX)	40mA
Sound Output @ 24V DC	MAX. 106 db(A) at 1 meter
Volume Control	0 to -20dB adjustment
Ingress Protection	IP44
Ambient Temperature	-25°C ~ +80°C
Material	Fire-proof plastic
Dimensions	92.5mm(Dia.) x 110mm(H)
Exploiting area	Outdoor
Mounting method	Surface mounting
Color	Red
Power consumption (alarm)	14.5 mA
Working temperature, °C	-25 ~ +80
Size	93 x 110 x 90mm
Weight	278g
