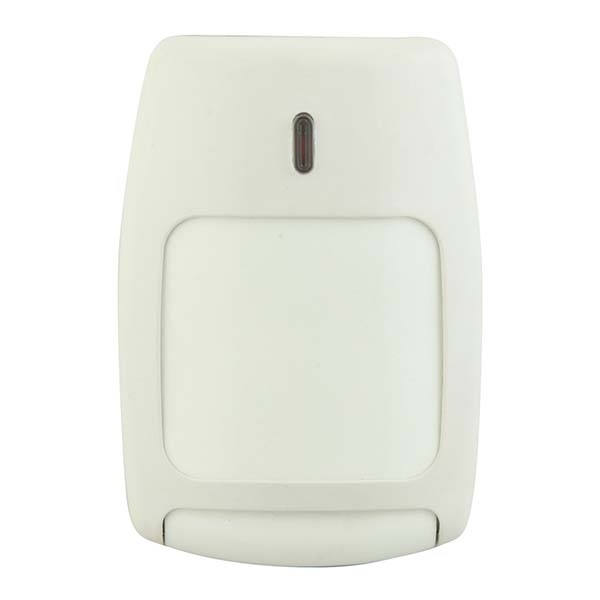

The IS216T-CUR is a passive infrared motion sensor with a curtain detection pattern. It is fully featured with dual slope temperature compensation, shock algorithm and digital signal processing. A curtain PIR is used for e.g. a shop window or a corridor.
This sensor is designed to fully comply with EN50131-1and TS50131-2-2 Grade 2, Class II.
Dip switch setting, a large wiring channel and mountingflexibility make the IS216T-CUR easy to install. Compromising the IS216T-CUR is inhibited by the look-down zones, tamper switch, sabotage-resistant lens design and the magnet-proof relay.
All these factors make the IS216T-CUR an ideal sensor forresidential and light commercial applications.

Features:
Meets EN 50131-1 and TS50131-2-2 Security Grade 2, Class II Environmental
Advanced Dual slope temperature compensation provides improved protection in warm environment
Digital processing for improved catch and false alarm protection
Shock algorithm to reduce false alarms
Solid State alarm relay cannot be compromised by a magnet
Dip switches for easy setting of parameters
10 min. walk test after start-up or trigger
Improved RF immunity offering additional protection against false activations
Large wiring channel on back to allow surface wiring
Patented look-down mirror provides optimum detection directly beneath the sensor
Wall-mount and corner mount knockouts provides mounting flexibility
Sabotage-resistant lens design
Selectable sensitivity
Tamper switch is activated before access is possible
White Light Immunity of minimum 6500 Lux reduces false activiation
Bug guard prevents insects access to the sensor optics preventing false activation
Designed for residential and lightcommercial applications
Silent relay allows for use in quiet environments

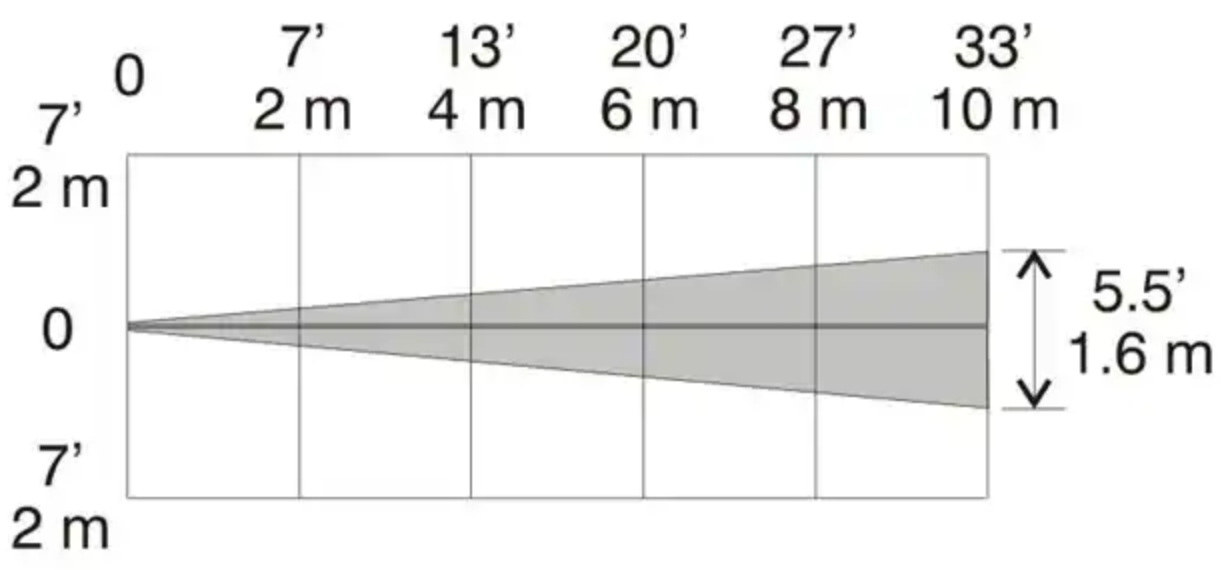

Horizontal mount, Side view:

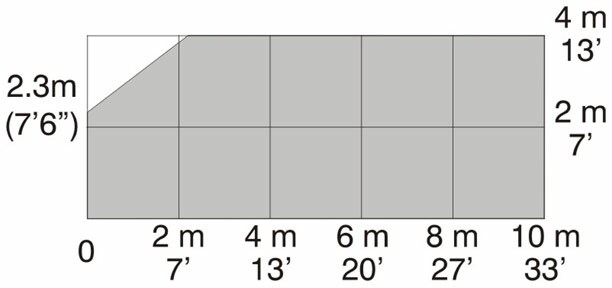

Vertical mount, Side view:

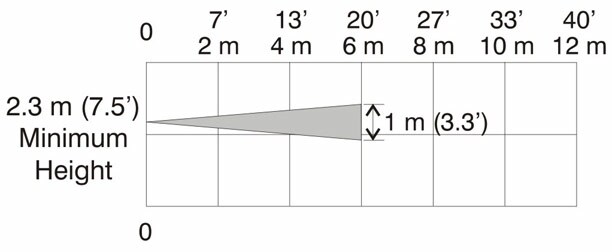

Vertical mount, Top view:
