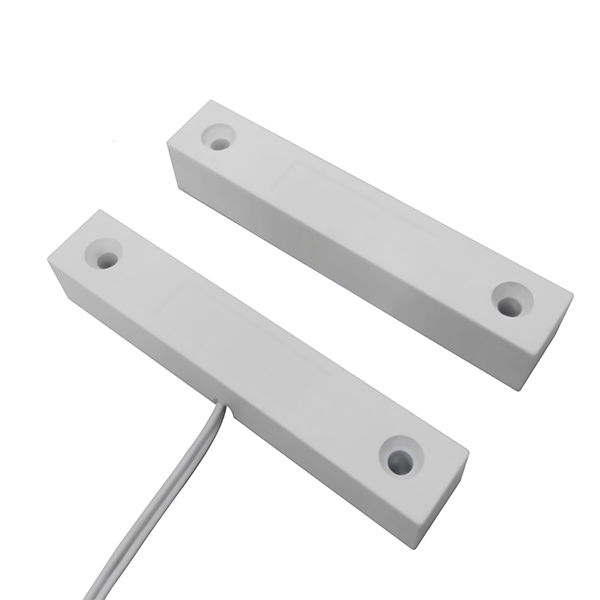

Surface Mount with Wire Leads/Screw Terminals
TA-59B features a wider make distance, which permits faster installation, accommodates
greater misalignment and works better on steel without time-consuming brackets.
A wider break distance helps prevent false alarms caused by loose fitting doors.
Housing: ABS material;fireproof ABS housing is available on request
Standard color: white
brown/black color available
Gap≥40mm,can be customized
Common out put is NC type,
NC-when magnet near the switch, switch is closed; when take magnet away, the switch is open.
NO or NC&NO type available.
Max current:0.5A
Max voltage:100V
Max power:10W
Initial resistance:200mΩ
Wires standard length 350mm,longer wires available

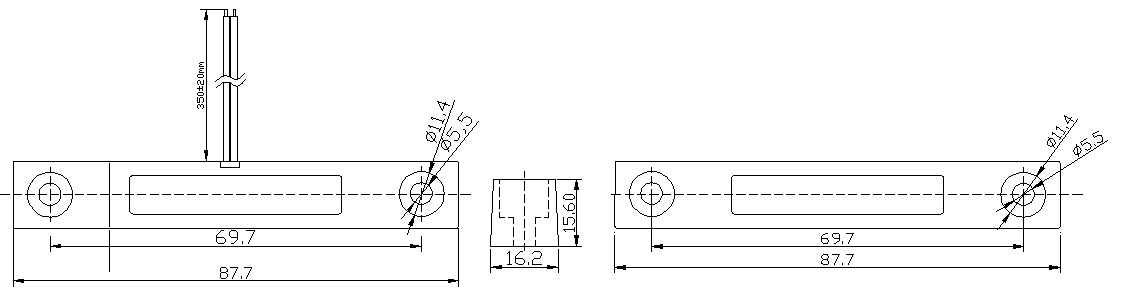

Dimension(mm):
