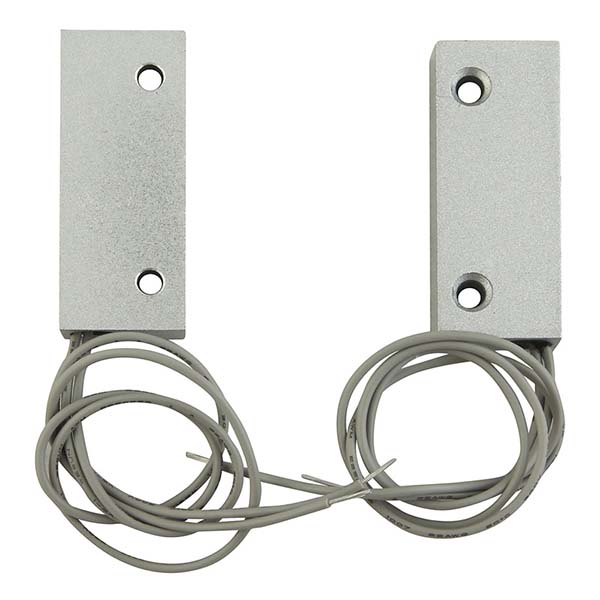

surface mounted magnetic switch

ideal for metal door/ window, for commercial applications and where a wide gap is needed.

TA-03F is designed to be installed in commercial and industrial environments where a rugged sealed unit is required. It is ideal for metal doors, fences and gates. Each model features a high strength extruded alloy-zinc housing and is completely encapsulated in epoxy glue. The TA-03F series feature wide gap distances and several models to meet any application need. Cored cable or armored cable is available.

Housing: alloy zinc material

Color: grey

Certificates: CE

Wires: 430mm in length is standard, longer wires available; cored cable is available

Dimension: 50 * 20 * 10mm

Gap：25-35mm

Current / Voltage / Power：0.5A/100V/10W

Output：NC/No/COM

Installation Surface mounted screws

Package：10 sets/bag
