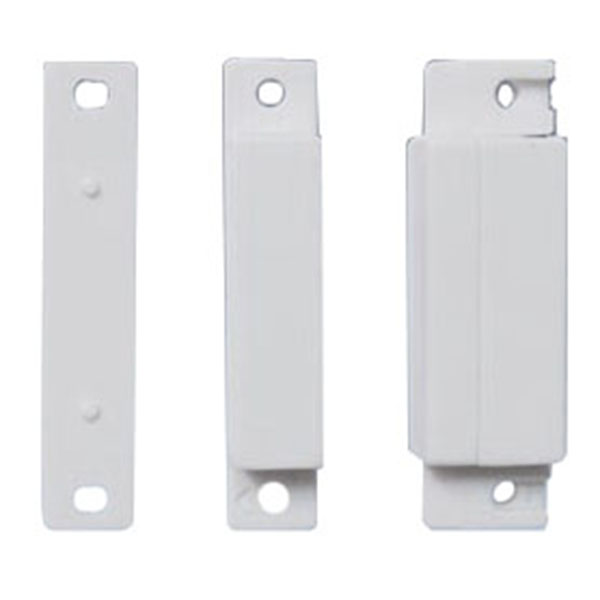

Surface mounted magnetic switch

Ideal for wooden door/window

The TA-31 series surface mount magnetic contact is ideal for residential and commercial applications where terminal connects are preferred.The screws have combination heads that accept either Phillips or flat blade drivers. The terminals are angled away from the mounting surface to allow for quick and easy installation. Snap-on covers conceal the terminals and mounting screws for a clean professional appearance. Wide gap, SPDT, and high security models are available.

IMPORTANT: Align contact and magnet as directed on magnet base (switches are polarity sensitive). Attach contact and magnet to surface. Wire leads to terminals. Snap on cover.

Housing: ABS material ; fireproof ABS housing is available on request

Color: white/black

Gap:15-25mm,20-30mm

Certificates: CE

Screw terminal connect surface

Dimension: 64 * 19 * 12.8mm

Current / Voltage / Power：0.5A/100V/10W

Output： NC/NO/COM

Package：10sets/ bag, 800 sets/carton
