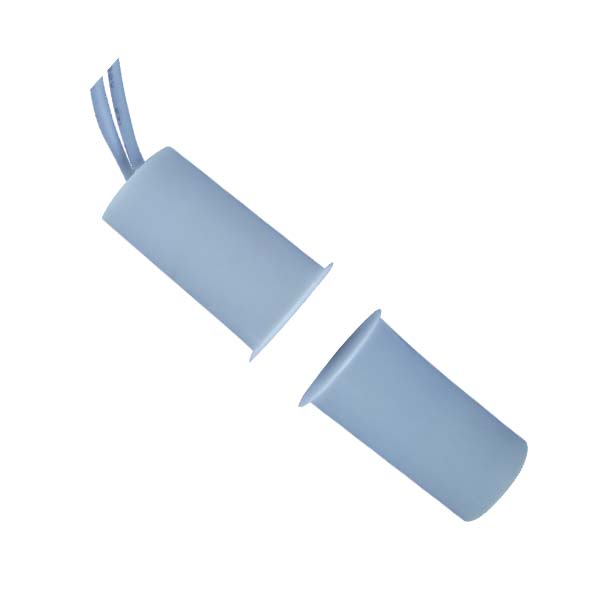

TA-33

recessed mounted magnetic contacts

  • Housing: ABS material; fireproof ABS housing is available on request
  • Color:white/brown
  • Gap:15-25mm
Recessed mounted magnetic switch
Ideal for wooden door/ window
TA-33 magnetic contact is designed with a flat side on the surface of the contact, which allows a flush fit on narrow surfaces.
This contact is recommended for use with casement windows, awning windows, and other areas where the contact must recess and fit into a narrow surface.

Housing: ABS material; fireproof ABS housing is available on request
Color:white/brown
Gap:15-25mm
Certificates:CE
Wires:350mm in length is standard, longer wires available
Dimension: φ10 * 17mm
Color: white/brown
Current / Voltage / Power:0.5A/100V/10W
Output: NC/NO/COM
Installation:Concealed drilling
Connection: 1007-24#-250mm/wire
