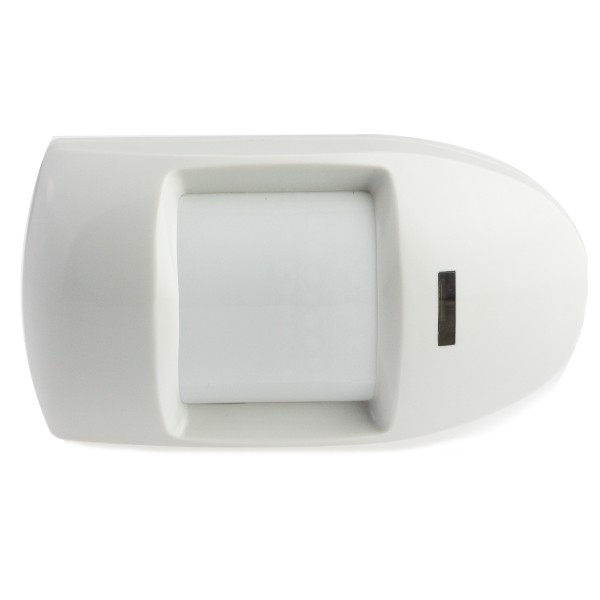

With an aesthetic curvilinear design, the Orion series of detectors offers excellent detection with advanced features. Available with an adjustable built-in microphone for alarm verification, superior RFI, EMI, ESD and lightning protection, adaptive temperature compensation as well as standard, curtain and long range lens options.
EL-55   Maximum Range: 14m x 14m
EL-55C Maximum Range: 1m x 14m
Analog signal processing
PIR detector
Temperature compensation
Dual element
Superior RFI, EMI, ESD and lightning protection
Thermal optic stabilization cavity
Technology: PIR technology
Pyroelectric Sensor Type: Dual element
Current Consumption in Standby: 15mA @ 12V
Current Consumption in Alarm: 17mA @ 16V
Power Supply: 9-16VDC
Pulse Count: 1, 2 or 3 selectable
RFI Immunity: 30V/m up to 1GHz
Operating Temperature: -10° To 60° C
Temperature compensation: Analog
Reverse Polarity Protection: Diode
LED indicator: Selectable
Dimensions: 11.4x 6 x 5cm
MB2 Support: Yes
LENS options: Standard/ Curtain/ Long range
Relay Parameters: N. C Dry contacts Switching 30Vdc, 0.1A max
