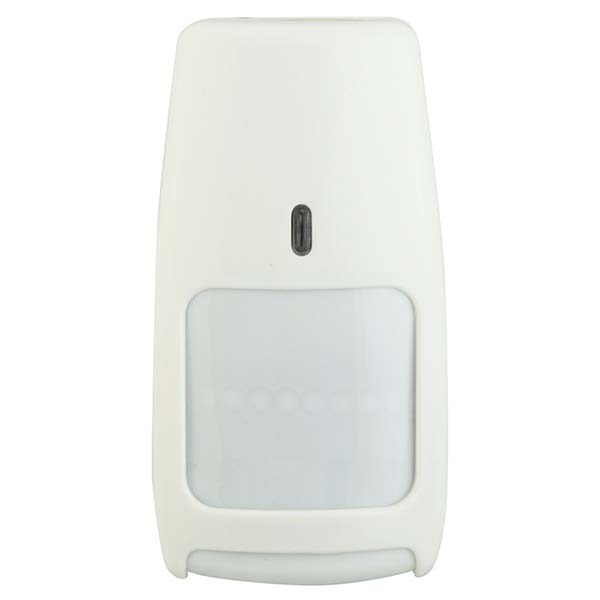

IS-220T_Infrared Detector_Detectors_Products_Shenzhen Taian Electronic Co., Ltd.

Product Brief

Cannot be compromised by a magnet
Dip switches for easy setting of parameters
Improved RF immunity
Large wiring channel on back to allow surface wiring
Patented look-down mirror provides optimum detection directly beneath the sensor
Wall-mount and corner mount knockouts provides mounting flexibility
Sabotage-resistant lens design
Selectable sensitivity
Tamper switch: activates before access to the circuitry is possible
White Light Immunity of minimum 6500 Lux reduces the chance of false activation
Bug guard prevents insects access to the sensor optics which reduces the chance of false activation
Designed for residential and light commercial applications

Specifications:
Detection method	Dual element passive infrared
Range	10 x 15 m (32 ft x 50 ft)
Detection zones	44 long range, 14 intermediate, 8 lower and 4 look-down
PIR sensitivity	Low (3-5 steps) and High (1-3 steps) by dipswitch
LED enable	By dipswitch
Mounting height	2.3 to 2.7 m
Power requirements	10 - 14 Vdc, 7 mA @ 12 Vdc
Alarm relay	Form A (NC) / 90 mA@16 Vdc, max. 40 Ohm protective resistor
Tamper switch	500 mA @ 30 Vdc
Operating temperature	-10°C to +55°C
Relative humidity	5% - 95% non condensing
RF Immunity	30 V/m from 10 to 1000 MHz
White Light Immunity	Better than 6500 Lux
Dimensions	86 x 60 x 38 mm. (HxWxD)
Weight	113.4g
