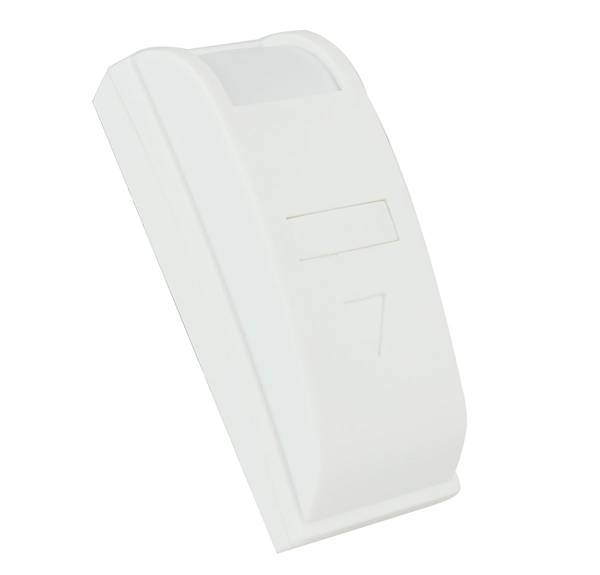

The PA-461 is the smallest and most elegant digital
curtain-pattern PIR detector using advanced digital True Motion Detection
Technology. Once motion signal is received, it compares and analyses the signal
with the true motion signal in database memory and ignores extraneous noises in
order to eliminate false alarm.
|
Name
|
Curtain PIR Detector IR Sensor Alarm
|
|
Brand
|
Paradox
|
|
Model
|
PA-461
|
|
Number of Curtain Beams
|
2
|
|
Mounting Height
|
Up to 3.6m
|
|
Range
|
6 meters
|
|
Voltage
|
DC10V-16V
|
|
Current Drain
|
12.5mA@12V
|
|
Alarm Output
|
Up to 100mA@30V, 18ohms internal distance
|
|
LED
|
Walk test enabled or disabled with jumper
link
|
|
Detector
|
Dual element, low noise pyroelectric sensor
|
|
Tamper Output
|
50mA@30V
|
|
Operating Temperature
|
-10℃~50℃
|
|
Storage Temperature
|
-20℃~60℃
|
|
RFI-Protection
|
20V/M to 1000MHz
|
|
Product Size
|
70 x 28 x 25 mm
|
|
Product Weight
|
25g
|
|
Package Size
|
8 x 3.5 x 3 cm
|
|
Package Weight
|
40g
|
