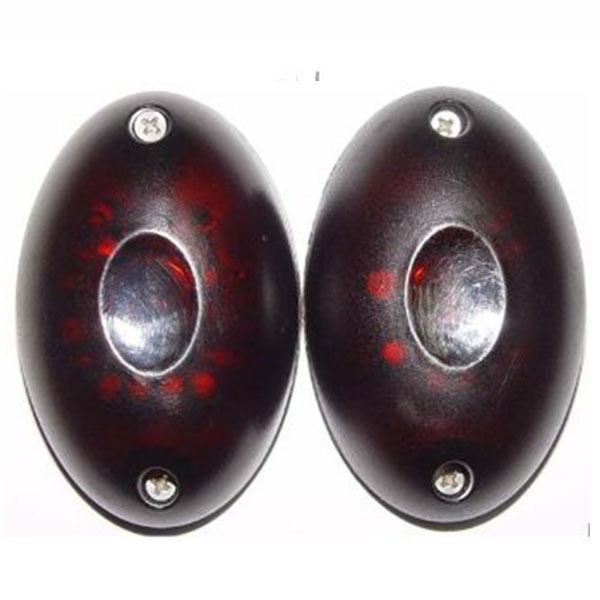

ALARM SYSTEM UNIVERSAL INFRARED SENSORS FOR AUTOMATIC DOORS (AX-25KD)
AX-25KD detection range: 25m
UNIVERSAL INFRARED SENSORS FOR AUTOMATIC DOORS
Model: AX-25KD
Maximum detection range: 25M
Power supply: DC12V/AC24V
Input: RX 15mA-TX 30mA
Aarm period: 2 sec. (1) nominal
Infra-Red Frequency: 1.92KHz
Operating temperature: -25C to +70C
Environmental humidity: 95% max.
Alignment angle: ± 10°
|
Mounting:
|
Wall and pole mounting
|
|
Dimensions:
|
49.2mm x 76mm x 21.6mm
|
|
Wave Length:
|
940nm
|
