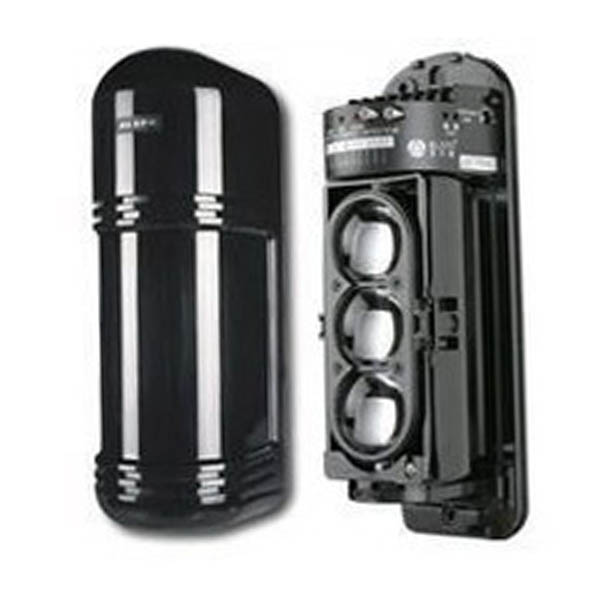

Outdoor used 3 beams digital
infrared detector, adopted large-caliber conjoined aspherical lens.
Highly
focused infrared , with longer detecting distance
Anti-glare
interference, lightning protection circuit design.
|
Model
|
ABE-50
|
ABE-100
|
ABE-150
|
ABE-200
|
ABE-250
|
|
Outdoor
detection distance
|
50m
|
100m
|
150m
|
200m
|
250m
|
|
Indoor
detection distance
|
150m
|
300m
|
450m
|
600m
|
750m
|
|
Number of
beams
|
3
|
|
Response
speed
|
35～700m/s
|
|
Alarm
output-normal
|
Normally
close and normally open（NC&NO）contact capacity AV/DC
30V/0.5mA
|
|
Alarm
linkage
|
√
|
|
Working
voltage
|
DC 8～36V；AC 8～20V
|
|
Working
current
|
60mA
|
65mA
|
65mA
|
65mA
|
|
Long-life
mode
|
40mA
|
32mA
|
32mA
|
32mA
|
|
Environment
|
temperature:-25℃～55℃ ； humidity:5%—95% (RH)
|
|
Tamper
output
|
Normally
close(NC) contact capacity AV/DC 24V/0.5mA
|
|
Adjust angle
|
Horizontal:180°(±90°) ； Vertical:±10°
|
|
Case
material
|
Germany PC
|
