Product Brief

Digilon technology is based on Crow's microprocessor logic. The signal analysis provides a very high performance level and produces virtually no false

Description:
Digilon technology is based on Crow's microprocessor logic. The signal analysis provides a very high performance level and produces virtually no false alarm activations including those caused by adverse weather, interference or environmental changes.

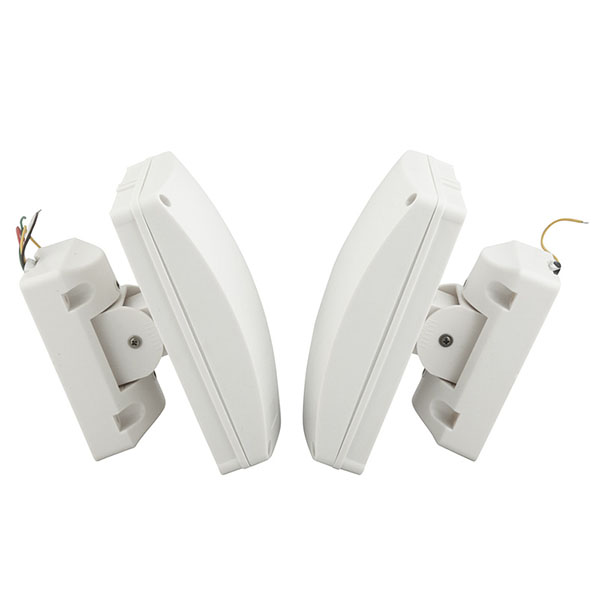

The CSB 200 Digilon consists of separate transmitter and receiver units. Mounted facing each other, up to the maximum permitted range, they create a volumetric barrier of protection against intrusion.
The CSB 200 Digilon is user friendly and features calibration free technology for improved accuracy and speed of installation. The Crow microcontroller makes all the necessary decisions keeping installer programming to a minimum.
The CSB 200 Digilon is the ideal choice for protecting high risk sites such as Power Stations, Prisons, Military installations, High risk industrial areas etc etc.

Features:
1. Detect human intruders walking, running or crawling.
2. Quick and easy installation on pole, fence or wall.
3. No maintenance required.
4. High RFI & EMI immunity
5. Protection of high security areas
6. Power failure protection and backup
7. Multi-level sensitivity adjustment

Model	CSB-100D	CSB-150D	CSB-200D
MW frequency	10.525GHz / 9.5GHz
Detection distance	100m	150m	200m
Central location width	5m
Central location height	2.5m
Grass width	0.3m
Snow width	0.5m
Power input	12～18 VDC
Working current	Transmitter：25～30mA，12VDC
	Receiver：30～35mA，12VDC
Alarm Relay capacity	（N.C.）50mA,20VDC
Alarm time	≤3s
Tamper switch capacity	（N.C.）0.1A,20VDC
Max emitting power	35mW（common）；50mW（Max）
Detection speed	0.1～10m/s
Alarm output	≥3s
Temperature	-40℃～+65℃
Humidity	Max 98%
Dimension	158×113×46mm
Water-proof design	Built-in water-proof equipment, anti-rain/snow 30mm/h
