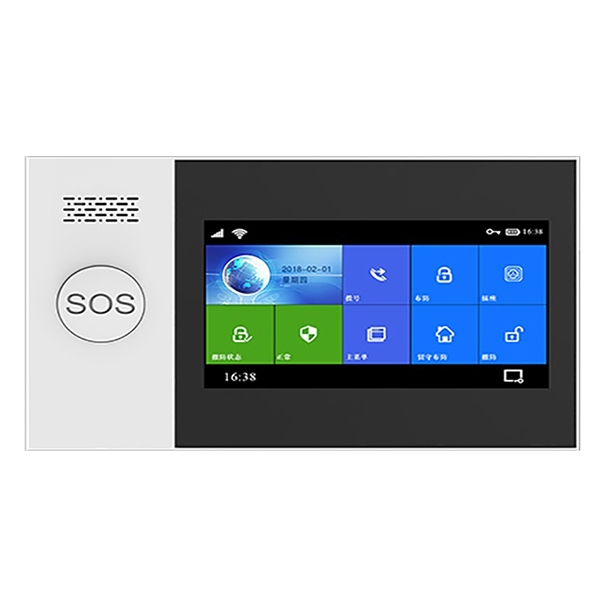

4.3-inch IPS color display, full capacitive touch screen operation, simple style man-machine interface and menu guidance design.

The main interface status bar, date and time clock display, host status at a glance.

Built-in powerful performance CPU master based on 32-bit Cortex-M3 core

Based on the operating system with multitasking design, with a great user operation experience.

WIFI/GSM/GPRS network alarm system, and support APP push/SMS/voice monitoring/center network etc. multi-channel alarm ways, to ensure the alarm performance stable and reliable.

Support SMS arm/Disarm and parameters setting, support invoice arm/Disarm.

Friendly APP operating experience and user interface, access to latest equipment working status.

Up to 100 storage locations for the learning of remotes, RFID and wireless detectors. 4 wired defense zone.

Support many defense zones name such as of the gate, SOS, bedroom, window, balcony, perimeter, smoke, gas, carbon monoxide, water leaking, etc.

Support the main power failure, backup battery power shortage, tamper alarm and other extended alarm; Support detector low battery alert & tamper alarm function.

Door open alert.

Support many defense zone types setting such as of entry/exit zone, indoor zone, perimeter zone, 24-hour zone, doorbell, etc.

Up to 5 groups preset alarm phone numbers, SMS on/off and voice on/off can be set respectively.

Support timing arm and disarm

Can store and query several daily operation records and alarm records.

GSM network automatic school, to ensure the clock is always accurate.

Support multi-language message and alarm voice.

Telephone function, support 5 groups re-dial number.

Daily operation Nouns

Arm: set security tash(anti-burglar), make the host into alert state, also known as arming, alert or booting .

Stay Arm: when users at home, only need to alert entrances or perimeter.

Disarm: cancel the safety task(anti-burglar), also known as removing alarm or shutdown.

Trigger: in arm state, detector detects someone or door is opened, it will trigger the detectors and make alarms.

Exit delay: when users come back and pass the arm zones, the host will not immediately make alarms, allow users to Disarm the host with some time; the host will make alarms if time out beyond the Disarm.

Alarm: when the host have the alarm assignment, it will cause the strobe alarm locally, then send the SMS alarm to the mobile defaulted, dial the mobile defaulted, push the alarm to the mobile app and send the message to the networking alarm center etc.

TECHNICAL PARAMETER

Input Voltage: DC5V(micro USB standard connector supply)

Working Current: <120mA when the screen is off, <240mA standby current when the screen is on

Standby current：<80uA

Siren output：<560mA

Wireless Frequency：315/433/868/915Mhz

Wireless code：eV1527

GSM system：850/900/1800/1900MHz

WIFI system：IEEE802.11b/g/n wireless standard

Spare battery：3.7V/500mAh Li battery

Operating temperature：0~55℃

Relative humidity：<80%（no condensation）

Product size：160x98x18MM（Length x Height x thickness)
