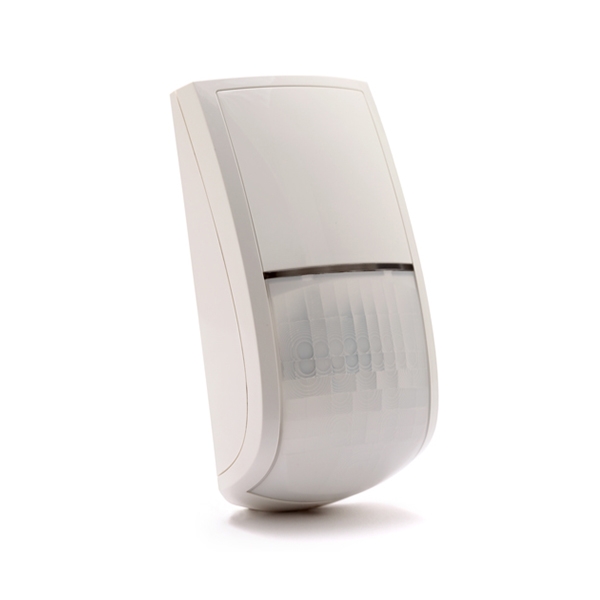

Powered by TAIAN’s detection technologies, these elegant and easy to install detectors are ideal for commercial, institutional and high-end residential installations. BWare is extremely reliable thanks to its usage of K-band microwave and other unique detection technologies, a convex lens provides enhanced catch performance and gold-plated wall and cover tampers for higher reliability.

The wide selection of models offers the flexibility to choose the best fit for all installation types. The BWare professional detector series also utilises several advanced technologies unique to TAIAN for superior performance, including Anti-Cloak, Green Line & Ant Mask technology and both Grade 2 & Grade 3 detectors are now also Benchmark Approved.

Features:
K-band microwave for superior performance and false alarm immunity
Internal cover protecting the PCB
Elegant sleek design with a single convex lens
Dual MW and PIR technologies
15m (50’) coverage
Anti-Cloak™ technology (ACT™)
Green Line™ for disabling the MW during disarm
Active IR Anti-mask on Grade 3 models
Built-in Triple EOL resistors, jumper selectable
Opto relays for defeating large magnets
Cover and wall/corner tampers

Technical Specifications:
Type: Indoor DT
PD6662, EN50131-2-4: Grade 3
Microwave K-band
PIR sensor Dual element
Anti-Cloak™ technology
Green Line
Intelligent digital signaling Processing
true temperature compensation
Built in EOL resistors, jumper selectable
Anti-mask method - Active IR
Coverage Wide angle 15m (50’)
Curtain lens 15m (50’)
Mounting height - 2.1m- 2.7m (6’11”-8’10”)
Current Consumption - 16mA at 12VDC (typical) 41mA at 12VDC (max)
Voltage requirements - 9-16VDC
RF Immunity - According to EN50130-4
Operating temperature - -10°C to 55°C (14°F to 131°F)
Storage temperature - -20°C to 66°C (-4°F to 140°F)
Filtering White light protection
Physical Size 127.6 x 64.6 mm (5x2.5x18.4in.)
Weight - 120 gr. (4.2 oz.)
