TA-35

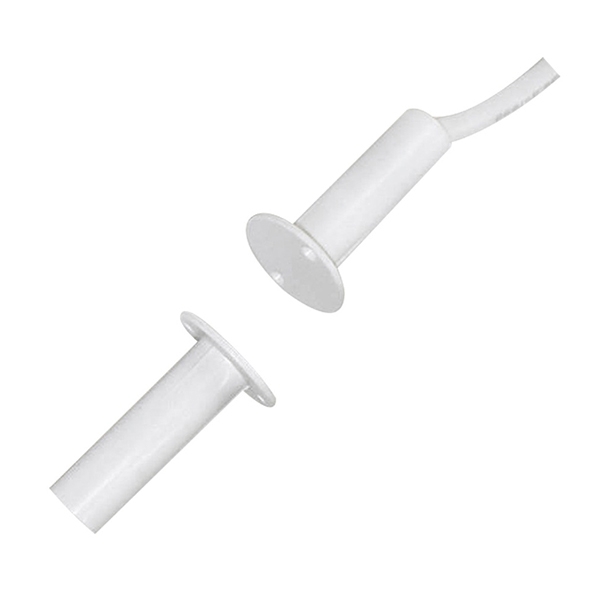

Press Fit Flush Magnetic Switch Sensor

  • Housing: ABS material; fireproof ABS housing is available on request
  • Standard color: white、brown、black color available
  • Sensing distance≥15mm, can be customized
  • Wires standard length 350mm,longer wires available

Recessed mounted magnetic switch

Ideal for wooden door/ window

TA-35 recessed contacts are designed for applications where the added integrity of mounting screws is needed.

The contacts work well in both wood and metal frame doors and windows.

The two mounting holes provide additional strength to prevent the contact and magnet from becoming dislodged due to environmental changes. Such changes may occur when

the door or window frame warps and misaligns from moisture or the settling of a building. 2 pcs metal screws come with the switch. A wide gap model is available to protect against false alarms

from loose-fitting doors and windows.

Housing: ABS material; fireproof ABS housing is available on request

Standard color: white、brown、black color available

Sensing distance≥15mm, can be customized

Wires standard length 350mm,longer wires available

Common out put is NC type,

NC-when magnet near the switch, switch is closed; when take magnet away, the switch is open.

NO or NC&NO type available.

Max current:0.5A

Max voltage:100V

Max power:10W

Initial resistance:200mΩ

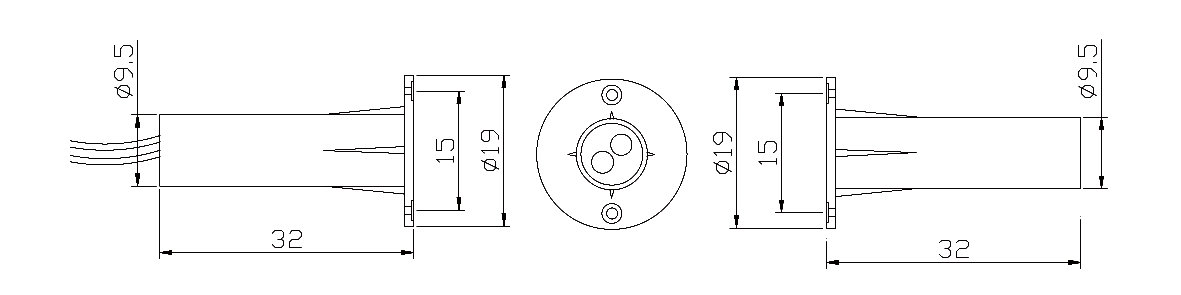

Dimension(mm)
