TA-55Y

Special Door Shutter Soors

  • Roller shutter sensor, heavy duty overhead door contact sensor
  • Armored cable in 380mm or 480mm length
  • Wider gap for reduced false alarms
  • Closed loop, open loop and SPDT types

Roller shutter sensor, heavy duty overhead door contact sensor

Armored cable in 380mm or 480mm length

Wider gap for reduced false alarms

Closed loop, open loop and SPDT types

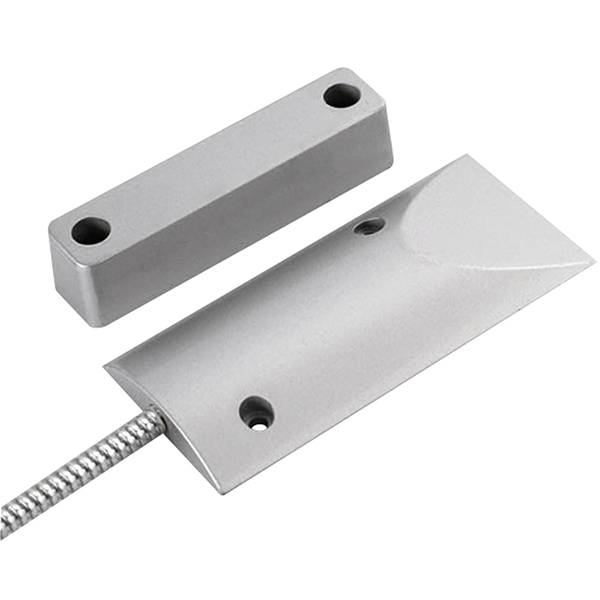

TA-55 Continents Series overhead door magnetic contact is for use in the rigorous environments of commercial and industrial installations.

The floor mount units are constructed with a low profile heavy cast alloy zinc housing.

Color: grey

Certificates: CE

Surface mounted on floor with screws, wires 530mm standard length, with armored cover cable of 380mm or 480mm

Features: For metal doors and cabinet doors

Product size: 105 * 48 *10mm

Case Material: Zinc Alloy

Sensing distance :50-70 (mm)

Installation: buried surface-mounted cargo

Connection: 22 # wire, 550MM (with 380mm stainless steel protection tube)

Current Voltage Power: 0.5A/100V/10W

Note: NO -- normally open (path alarm)

NO & NC -- normally open normally closed (this note two, can provide)

Package:1set/bag,100 sets/carton
