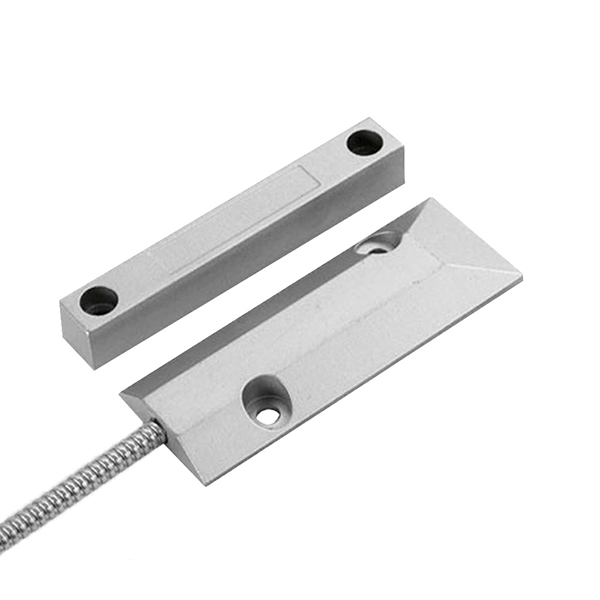

Roller shutter sensor, heavy duty overhead door contact sensor

Armored cable in 380mm or 480mm length

Wider Gap for reduced false alarms

Closed Loop, open loop and SPDT types

TA-55 Continents Series overhead door magnetic contact is for use in the rigorous environments of commercial and industrial installations.

The floor mount units are constructed with a low profile heavy cast alloy zinc housing.

Housing: alloy zinc

Color: grey

Gap:50-70 mm

Certificates: CE

Surface mounted with screws, leads 530mm standard length, with armored cover cable of 380mm or 480mm

Dimension: 106 * 38 * 10mm

Current / Voltage / Power：0.5A/100V/10W

Output：NC/No/COM

Installation： buried or surface mounting

Package：1set/bag,100 sets/carton

Adjustable "L" bracket, magnet can be installed in many ways!

Selectable "L" bracket
