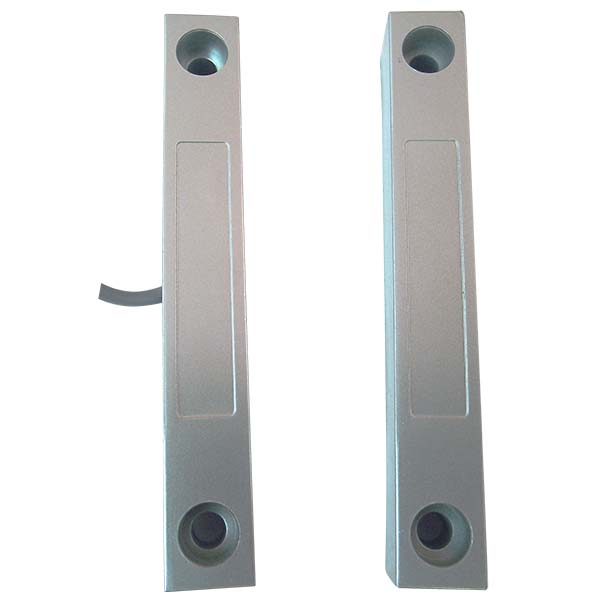

surface mounted magnetic switch

ideal for metal door/ window, for commercial applications and where a wide gap is needed

TA-59A is designed to be installed in commercial and industrial environments where a rugged sealed unit is required. It is ideal for metal doors, fences and gates. Each model features a high strength extruded alloy-zinc housing and is completely encapsulated in epoxy glue. The TA-59A series feature wide gap distances and several models to meet any application need. Cored cable or armored cable is available.

Housing: zinc material

Color :grey

Gap: 40-60mm

Certificates: CE

Wires: 430mm in length is standard, longer wires available

Dimension: 104 * 16 * 16mm

Current / Voltage / Power：0.5A/100V/10W

Output：NC/NO

Installation：Surface mounted screws

Package：5sets/bag,200 sets/carton
