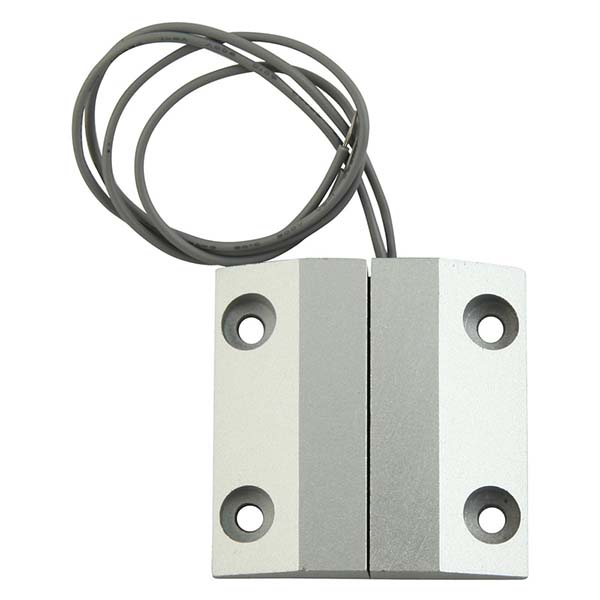

surface mounted magnetic switch

ideal for metal door/ window, for commercial applications and where a wide gap is needed

TA-56 is designed to be installed in commercial and industrial environments where a rugged sealed unit is required. It is ideal for metal doors, fences and gates. Each model features a high strength extruded alloy-zinc housing and is completely encapsulated in epoxy glue. The TA-56 series feature wide gap distances and several models to meet any application need. Cored cable or armored cable is available.

Color: grey

Gap: 40-50mm

Certificates: CE

Wires: 430mm in length is standard, longer wires available; cored cable or armored cover cable is available

Dimension: 49 * 25 * 15mm

Case Material：Zinc alloy

Current / Voltage / Power：0.5A/100V/10W

Output：NC/NO/COM

Connection：22# /wire,250mm

Installation：Surface mounted screws

Package: 5 set/bag,200 sets/carton
