surface mounted magnetic switch

ideal for wooden door/ window

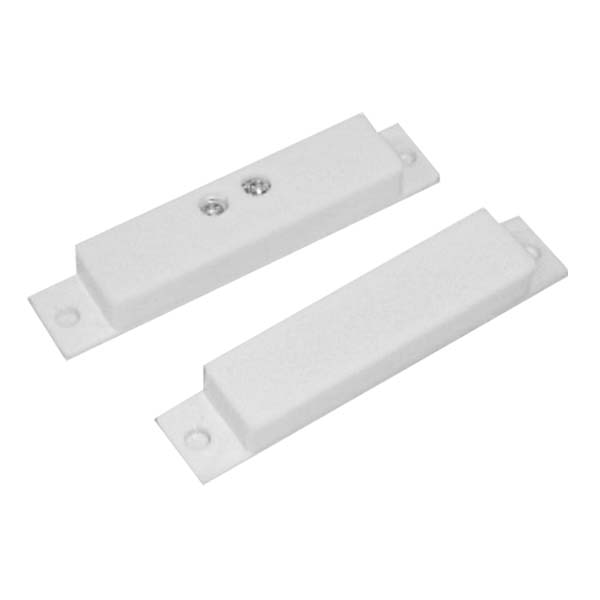

TA-30 surface mount contact with terminals is designed for window or door applications where a surface mount contact is preferred. Thanks to its unique design, the TA-30 is fast and easy to install. The switch and magnet are incorporated into the housings.

Simply mount the switch and magnet using the tape or mounting screws provided and connect the wire to the terminal blocks. The TA-30 features an attractive, low-profile design.

Housing: ABS material ; fireproof ABS housing is available on request

Color: white/brown

Gap: 15-25mm

Certificates: CE

Screw down or super adhesive, slim stype and intaller easy

Dimension: 44*10*7mm

Current / Voltage / Power：0.5A/100V/10W

Connecting type： Terminal Connection

Output：NO

Installation:surface mount

Package：20 sets / bag,1000 sets/carton
