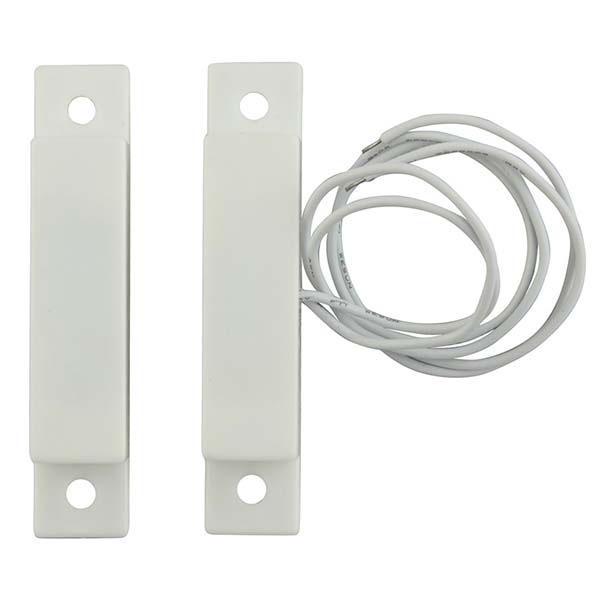

surface mounted magnetic switch

ideal for wooden door/ window

TA-35 surface mount contact is designed for use in installations where a larger sealed unit is required.

The wide gap distance allows for fast, easy installation and prevents false alarms due to loose-fitting doors.

Select desired mounting positions for switch and magnet.

For wide gap switches align labels on switch and magnet so labels read in the same direction.

 Housing: ABS material; fireproof ABS housing is available on request, OKI reed switch

Color: white/brown

Gap: 15-25mm, 20-30mm

Certificates: CE

Leads: 350mm in length is standard, longer wires available

Current / Voltage / Power：0.5A/100V/10W

Connecting type：1007-24#-250mm/wire

Output： NC/NO/COM

Installation： strong double-sided end of plastic, with screw mount
