FI-1004/FI-1008/FI-1016

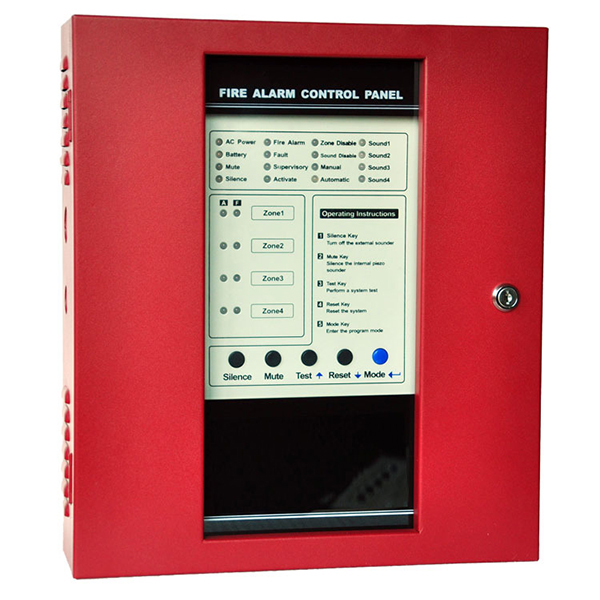

1000 Series Conventional Fire Alarm Control Panel

  • Four to Sixteen Style B (Class B) Initiating Device Circuits (IDCs).
  • All zones accept two-wire smoke detectors and any normally-open contact devices.
  • Zones 1 - 16 configured as general alarm zones.
  • All circuits are power-limited and supervised, meeting the latest ULC requirements using fuseless technology.
  • Two built-in, Style Y (Class B) Notification Appliance (Signal) Circuits (NACs).
The FI-1000 Series Conventional Fire Alarm Control Panel is a 24 volt, four, eight, sixteen-zone, Class B, Conventional Fire Alarm Control Panel. Designed exclusively to meet the latest market requirements and future ULC codes, the highly cost-effective FI-1000 Series can be used in a variety of low- to mid-sized applications.
FEATURES
Four to Sixteen Style B (Class B) Initiating Device Circuits (IDCs).
All zones accept two-wire smoke detectors and any normally-open contact devices.
Zones 1 - 16 configured as general alarm zones.
All circuits are power-limited and supervised, meeting the latest ULC requirements using fuseless technology.
Two built-in, Style Y (Class B) Notification Appliance (Signal) Circuits (NACs).
NACs may be programmed:
– Silenceable.
– Non-Silenceable.
– Auto-Silence (program 5 to 20 minutes).
1.25 amps of NAC power.
3.0 amps of total system power.
Alarm, Trouble and Supervisory, relay output.
24-volt operation.
Resettable four-wire smoke detector power @ 500 mA.
Non-resettable power @ 500 mA.
Integral battery charger capable of charging up to 18 AH batteries (batteries over 4 AH require use of the external battery backbox, or ULC listed equivalent).
Disable/Enable control per IDC.
Reverse polarity protection.
Control buttons:
– Mode
– Test
– ACK (Acknowledge) Alarm Silence
– Reset
LED indicators:
AC Power(green & yellow LED)
Fire Alarm(red LED)
Trouble(yellow LED)
Supervisory(yellow LED)
Signal Silence(yellow LED)
Battery Power(green & yellow LED)
– Zone Disable(yellow LED)
– NAC Fault(yellow LED)
– NAC Disable(yellow LED)
– Zone Alarm(one for each zone) (red LED)
– Zone Trouble(one for each zone) (yellow LED)
– Earth Fault (on circuit board)
– Battery Fault (on circuit board)
– Charger Fault (on circuit board)
SPECIFICATIONS
AC POWER
– 90~270 VAC, 50 Hz, 2.0 amps.
– Wire size: minimum 14 AWG (2.0 mm2) with 600-volt insulation.
BATTERY
– Sealed lead-acid batteries only.
– Maximum charging circuit: 27.6VDC @ 0.8 amp for normal flat charge.
– Maximum battery charger capacity: 18AH battery.

NOTE: two 4AH batteries can be housed in the cabinet. Larger

batteries require a separate battery box.
Total 24 V system power: 3.0 amps.
Notification appliance (signal) power: 2.5 amps.
Maximum current per NAC: 1.25 amps (expandable to 2.5amps).
Maximum battery charging capability: 18 AH.
Auxiliary Outputs
Resettable four-wire smoke detector power @ 500 mA.
Non-resettable power @ 500 mA.

NOTE: Total current for auxiliary power outputs and two NACs must not exceed 3.0 amps. .
Integral Form-C Alarm, Trouble and Supervisory relays, rated at: 2.0 amps @ 30 VDC (resistive), 2.0 amps @ 30VAC (resistive).

CABINET AND MOUNTING
CABINET PHYSICAL DIMENSIONS: 40.0 cm high x 35.0 cm wide x 11.5 cm deep.
CARTON PACKAGE DIMENSIONS: 48.0 cm high x 42.0 cm wide x 18.5 cm deep.
CABINET NET WEIGH: 6.0 Kg. (without batteries).
CABINET GROSS WEIGH: 6.6 Kg. (without batteries).

MOUNTING: The cabinet mounts using two key slots at the top of the back and two additional 6.5mm diameter holes at the bottom.
