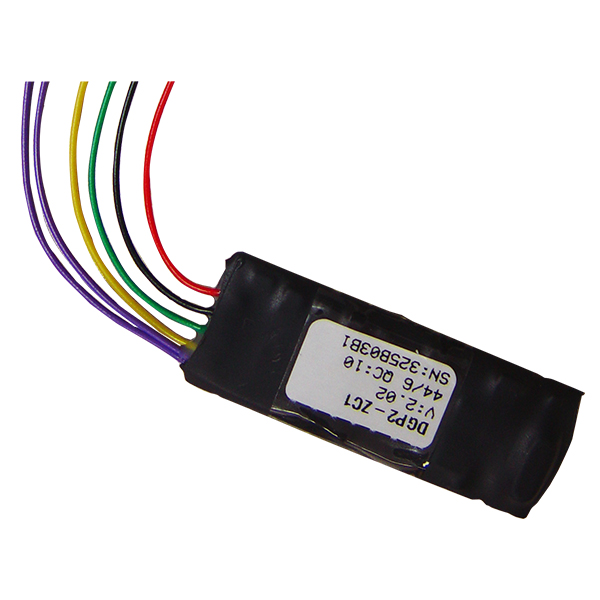

You Are Here: HOME>Security>Control Panels / Keypads >PARADOX Series > DGP2-ZC1


1 addressable zone

  • 1 addressable zone

On-board Tamper Switch: Yes

Voltage Input: 9 to 16 VDC

Current Consumption: 14.2mA typical

Operating Temperature: 0°C to 50°C (32°F to 122°F)

Number of Zones: 1 standard zone

Power-up Indication: Green LED illuminates

Proper Operation: Red LED flashes

Locate Indication: Green LED flashes

Bus Fault Indication: Green and red LEDs flash alternately

Compatibility: Any Digiplex (DGP-848 / DGP-NE96/EVO48/EVO192) control panel
