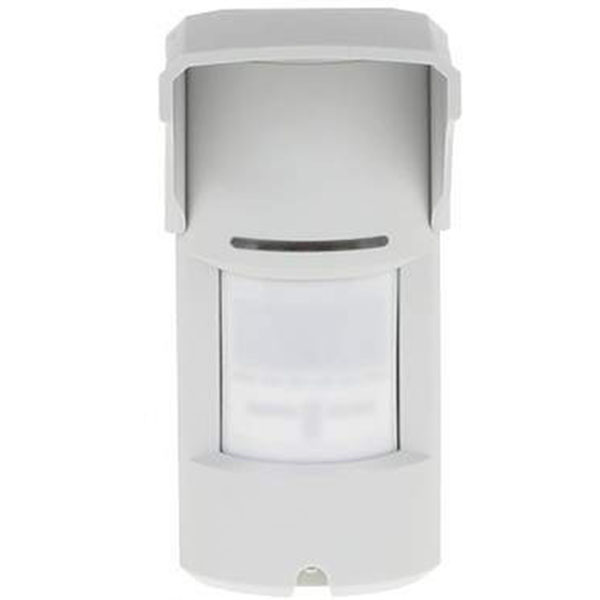

EDS-2000DUO

Quad PIR and Microwave Outdoor Detector

  • X-Band 10.525GHz detectors
  • 15m WA detection range at 2.4m installation height
  • Quad Element Pyro sensor and K-Band 24 Ghz microwave (optional X-Band)
  • Outstanding white light RFI immunity
Up to 55kg Pet immunity
X-Band 10.525GHz detectors
15m WA detection range at 2.4m installation height
Operation temperature: -35° to +55°C
Operation Voltage: 9.6 to 16 Vdc
Over-voltage protection: 1kV per IEC61000-4-5 and EN-50130-4
Relay contacts rate: 28Vdc, 0.1A
Certified EN50131 Grade 3
Quad Element Pyro sensor and K-Band 24 Ghz microwave (optional X-Band)
Outstanding white light RFI immunity
Form A / Form C
IP 65 Compliant
14m X 18m (46 ft X 60 ft) WA detection range at 1.20m (3.9 ft) installation height
And / Or mode
Dimensions (HxWxD): 162 x 70 x 69 mm (6.3” x 2.8” x 2.7”)
