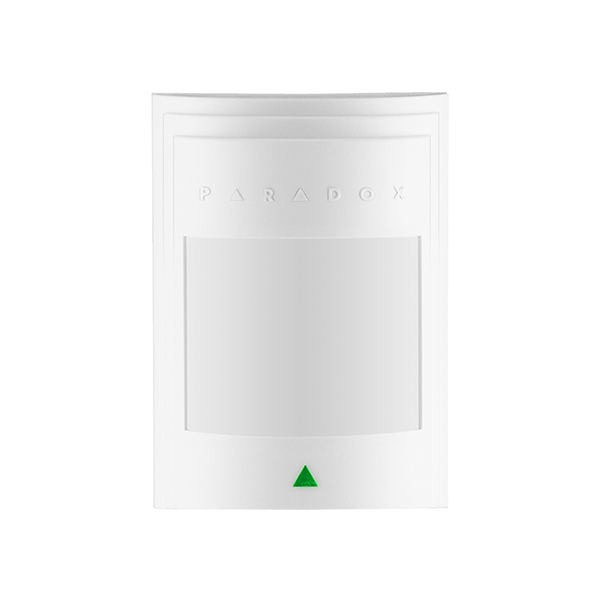

PA-476+

PIR with High EMI and RFI Rejection

  • Extremely high EMI and RFI rejection
  • PCB uses only surface mount components
  • Solid-state relay
  • 11m x 11m (35ft x 35ft); 110° viewing angle
  • See Features and Specifi cations Common to All Analog Motion Detectors above
PIR with High EMI and RFI Rejection
Extremely high EMI and RFI rejection
PCB uses only surface mount components
Solid-state relay
11m x 11m (35ft x 35ft); 110° viewing angle
See Features and Specifi cations Common to All Analog Motion Detectors above

Specifi cations:
operates at 11Vdc to 16Vdc;
31mA maximum current consumption;
10V/m rejection from 10MHz to 1GHz;
2.1m to 2.7m(7ft to 9ft) installation height;
0.2m to 3.5m/s (0.6ft to 11.5ft/s) walk speed;
operates at -20°C to +50°C (-4°F to 122°F)
