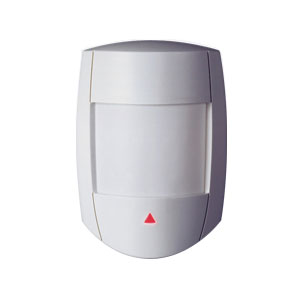

Digital Dual Opposed Detection

Interlock Sensor Geometry

Quad element sensor

12m (40ft) X 12m (40ft); 110° viewing angle

Features and Specifications Common to All

Digital Motion Detectors

Patented Digital Motion Detection

Patented Auto Pulse Signal Processing

Digital Shield algorithm software with adjustable sensitivity

Automatic Temperature Compensation

Solid-state relay

Specifi cations: operates at 11Vdc to 16Vdc;

0.2m to 3.5m/s (0.6ft to 11.5ft/s) walk speed;

anti-tamper switch (150mA/28Vdc, N.C.);

operates at -20°C to +50°C (-4°F to +122°F) except

2.1m to 2.7m (7ft to 9ft) installation height;

alarm output (form A relay 100mA/28Vdc, N.C. or optional form C relay 5A/28Vdc,N.C./N.O.);
