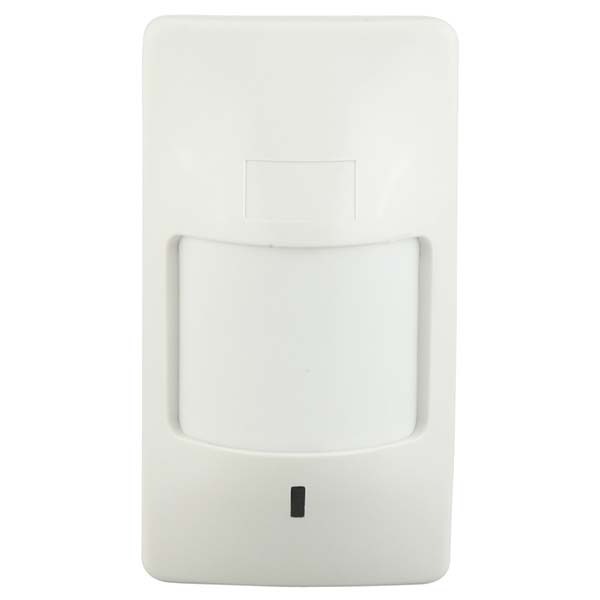

ZoDIAC PRO (RK410PR) - PIR Detector
The best selling Z0DIAC PRO has been
specially designed for excellent catch performance and high false alarm
immunity.
Optimal installationis facilitated using the supplied free
swivel.
The internal cable duct and ample space inside make wiring easy.
With an optical protective sleeve and white light protected lens the
Z0DIAC PRO prevents false alarms.
Full 12x12m (40’x40’) coverage
Improved false alarm immunity
High RFI immunity above 20V/m
Free swivel for wall/ceiling mounting
Selectable pulse count
White light protection
Optical protective sleeve
Optional long range lens
Internal cable duct and ample wiring space
for easy installation
Temperature Compensation: Automatic,
thermistor controlled
Swivel adjustment: Horizontal ±25°,
Vertical +5°, -20°
Optical filtering: White light protection,
pigmented lens
RF Immunity (10 MHz to 1GHz): 20 V/m
Operating Temperature: -10°C to 50°C (14°F
to 122°F)
Storage Temperature: -20°C to 55°C (-4°F to
131°F)
Dimensions: 107 x 58 x 39mm (4.2 x 2.3 x
1.5in)
|
Specifications
|
ZODIAC
PRO (RK410PR)
|
ZODIAC
PET (RK410PT)
|
|
Pet
Immunity
|
rodents
|
70lb
(33kg) dog, 4 cats
|
|
Operating
Voltage 9 to 16VDC regulated
|
✔
|
✔
|
|
Current
Consumption
|
12mA
|
15mA
|
|
Alarm
Contacts NC, 100mA, 24VDC maximum
|
✔
|
✔
|
|
Tamper
Contacts NC, 100mA, 24VDC maximum
|
✔
|
✔
|
|
Alarm
Time 2,2 seconds minimum
|
✔
|
✔
|
|
Adjustable
Pulse Count 1,2,3
|
✔
|
✔
|
|
Temperature
Compensation Automatic, thermistor controlled
|
✔
|
✔
|
|
Swivel
adjustment Horizontal: ±25° Vertical: +5°,-20°
|
✔
|
N/A
|
|
Optical
filtering White light protection, pigmented lens
|
✔
|
✔
|
|
Optional
long range lens (RL407H)
|
✔
|
N/A
|
|
RF
Immunity (10MHz to 1GHz)
|
20V/m
|
20V/m
|
|
Operating
Temperature -10°C to 50°C (14°F to 122°F)
|
✔
|
✔
|
|
Storage
Temperature -20°C to 55°C (-4°F to 131°F)
|
✔
|
✔
|
|
Dimensions
107 x 58 x 39 mm (4.2 x 2.3 x 1.5in)
|
✔
|
✔
|
