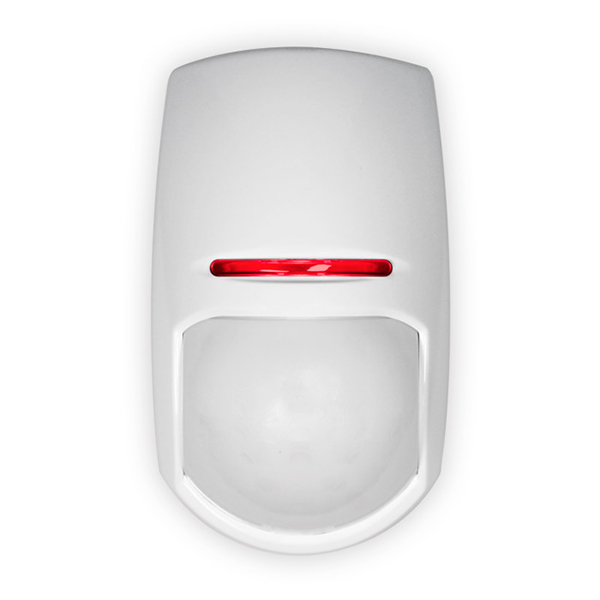

15m Economy Dual PIR Detector

  • Dual element pyro-electric sensor
  • 15m Volumetric detection coverage
  • Selectable EOL (End Of Line) resistors
  • Patented Independent Floating Thresholds (IFT)
  • Adjustable sensitivity settings
  • Automatic temperature compensation
  • Tamper proof brackets included
  • Sealed optics
  • ABS plastics

The KX15ED is the entry level detector in the KX range. With the ability to adjust the sensitivity settings and temperature compensation you will still get great performance.

15m Volumetric detector

15m Volumetric detection coverage. Ideal for protection of rooms, offices etc.

Selectable EOL resistors

The detectors incorporates selectable alarm resistor values of 6K8, 5K6, 4K7 &1K & tamper values of 5K6, 4K7, 2K2 and 1K catering for most control panels on the market.

Patented Independent Floating Thresholds (IFT)

This technology patented by Pyronix allows the detector to respond to the environmental changes by automatically adjusting its levels of immunity to background disturbances.

Adjustable sensitivity settings

Adjustable sensitivity settings for installations in a any environment. (High/Low)

Automatic temperature compensation

When the product is used in a hot environment this technology automatically adjusts the detector's sensitivity allowing it to maintain its range even when the background room temperature is almost equal to the external body temperature of 32c

Tamper proof brackets

Supplied with both wall & ceiling mount brackets which provides access for up to two 8 core cables (Tamper kit optional)

Sealed optics Protects from possible infestation from insects, shields air movement in front of the pyro-electric sensor and protects against adverse reflections from inside the detector housing.

ABS plastics

3mm polished finish, reduces electrostatic interference on the PIR sensor.

Optical, lens and detection characteristics:

Maximum range: 15m

Volumetric coverage: Yes

Detection speed: 0.3 - 3.0 m/s

Coverage angle: 85 degree

Detection zones: 60

Detection planes:7

Protection of area under the detector (creep zone):Yes

White light filter: 6500 Lux

Protection: Ultraviolet light filter

Lens: 3 dimensional

Optics: Sealed optics

Detection method: Low noise dual element pyroelectric sensor
