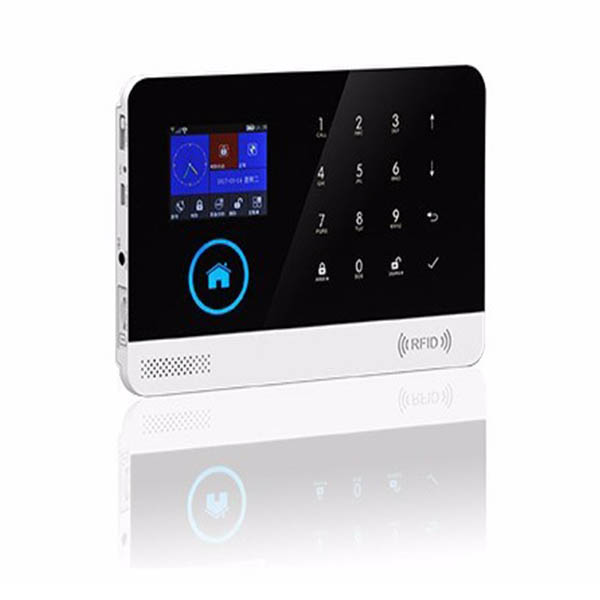

CS88

GSM+GPRS+3G+WIFI Alarm System

  • ARM chip embedded operating system
  • GSM + GPRS + 3G+ WIFI 4 in 1 technology
  • Mobile phone APP remote control technology
  • Support configuration of IP camera
  • Support doorbell function

Built-in powerful performance CPU master based on 32-bit Cortex-M3 core.

Based on uCOS - III operating system with multitasking design, providing user with a great operation experience.

WIFI/GSM/GPRS network alarm system, and support APP push/SMS/voice monitoring/center network etc. multi-channel alarm ways, to ensure the alarm performance stable and reliable.

Reserve remote GPRS TCP/UDP protocol channel, compatible with multi-alarm center network protocol, convenient for network alarm.

100 defense zones for the learning of remotes and wireless detectors.

Up to 5 groups preset alarm phone numbers, SMS on/off and voice on/off can be set respectively.

Support many defense zones name such as of the gate, SOS, bedroom, window, balcony, perimeter, smoke, gas, carbon monoxide, water leaking, etc.

Support many defense zone types setting such as of entry/exit zone, indoor zone, perimeter zone, 24-hour zone, etc.

Support the main power failure, backup battery power shortage, tamper alarm and other extended alarm.

Support external wireless siren.

Support timing arm and disarm

Support for time zone settings for multi-national multi-regional area.

Support multi-language menu display.

20-second artificial message recording.

GPRS real-time networking online, access to the latest working state at any time. Automatically alarm if offline.

Center remote control.

Power input : DC 5V (micro USB standard

interface power supply).

Working current:<120mA.

Standby current:<80uA.

Alarm current:<500mA.

Wireless frequency: 433Mhz.

Wireless coding: EV 1527.

GSM bands: 850/900/1800/1900Mhz.

Wi-Fi bands: IEEE802.11b/g/n RF standard.

Standby battery: 3.7V/500mAh lithium-ion.

Temperature range: 0℃ ~ 55℃.

Humidity range: < 80%RH (No freezing).
