ABH

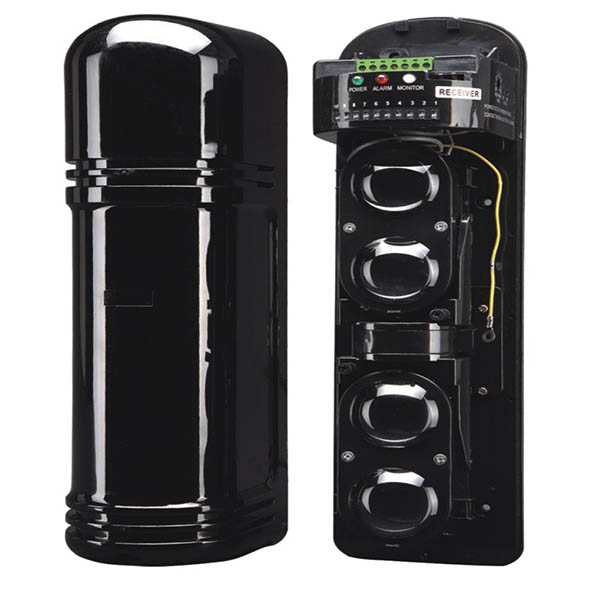

4 Beams Digital Active Infrared Detector

  • Outdoor used 4 beams digital infrared detector, adopted large-caliber conjoined aspherical lens,
  • Highlyfocusedinfrared , with longer detecting distance,
  • Anti-glare interference, lightning protection circuit design.

Outdoor used 4 beams digital infrared detector, adopted large-caliber conjoined aspherical lens,

Highlyfocusedinfrared , with longer detecting distance,

Anti-glare interference, lightning protection circuit design.

Model

ABH-50

ABH-100

ABH-150

ABH-200

ABH-250

Outdoor detection distance

50m

100m

150m

200m

250m

Indoor detection distance

150m

300m

450m

600m

750m

Number of beams

4

Response  speed

35700m/s

Alarm output-normal

Normally close and normally openNC&NOcontact capacity  AV/DC  30V/0.5mA

Alarm output-bus

RS-485

Working voltage

DC 836VAC 820V

Working current

60mA

65mA

65mA

65mA

70mA

Long-life mode

40mA

32mA

32mA

32mA

40mA

Environment

temperature:-2555    humidity:5%~95% (RH)

Tamper output

Normally close(NC)   contact capacity AV/DC   24V/0.5mA

Adjust angle

Horizontal:180°(±90°)    Vertical:±10°

Case material

Germany PC
